Serious Lifting Power

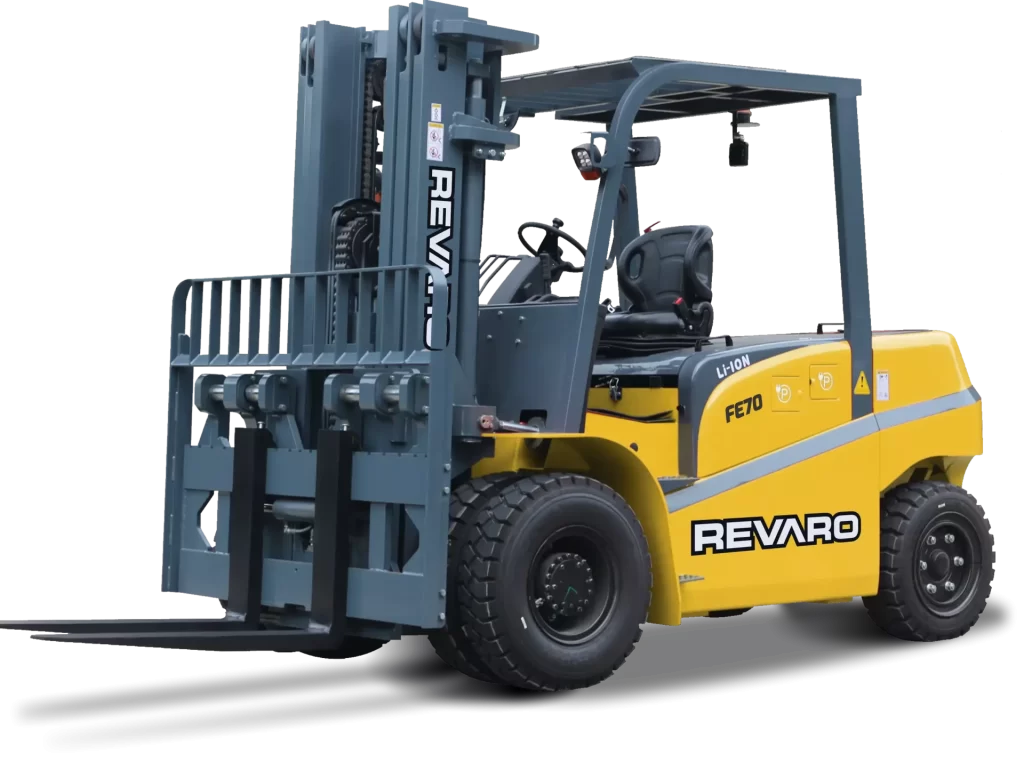

The Revaro FE70 is engineered for tough applications, offering high capacity and excellent stability for industrial use.
- Designed for heavy industrial loads
- Strong and stable under pressure
- Efficient, low-maintenance system
Specifications
- Brand: Revaro
- Model: FE70
- Type: Electric Forklift
- Note: Custom Batteries Available
- Power type: Lithium/Battery
- Driving type: Seated
- Tyre type: Solid
- Rear tread: 1190mm
- Max lifting height (std ZM300): 3000mm
- Lowering speed: <600mm/s
- Gradeability: 15%
- Controller: ZAPI
- Brake: Hydraulic/Mechanical
- Hydraulic pressure: 19.5MPa
- Tilt (mast): 6/12°
- Rated capacity: 7000kg
- Load center distance: 600mm
- Wheel base: 2350mm
- Wheel number (front/rear): 4x/2
- Front tread: 1470mm
- Tyre (front): 8.25-15
- Tyre (rear): 250-12
- Front overhang: 585mm
- Mast tilting angle: 6/10°
- Turning radius: 3180mm
- Overall length: 3457mm
- Overall width: 2002mm
- Travel speed (loaded/unloaded): 14/16km/h
- Lifting speed (loaded/unloaded): 320/450mm/s
- Total weight: 10300kg
- Battery voltage/capacity: 80/800V/Ah
- Battery weight: 2090kg
- Drive motor power: 30kW
- Lift motor power: 2x26kW
- Load capacity (mast): 6500-7000kg
- Mast overall height: 2470/2655mm
- Free lift height: 1038/1223mm
Available new from Bethlehem Vurkhyser Velddienste, with delivery, finance options and backup from our Bethlehem workshop. Contact us for pricing and availability.
