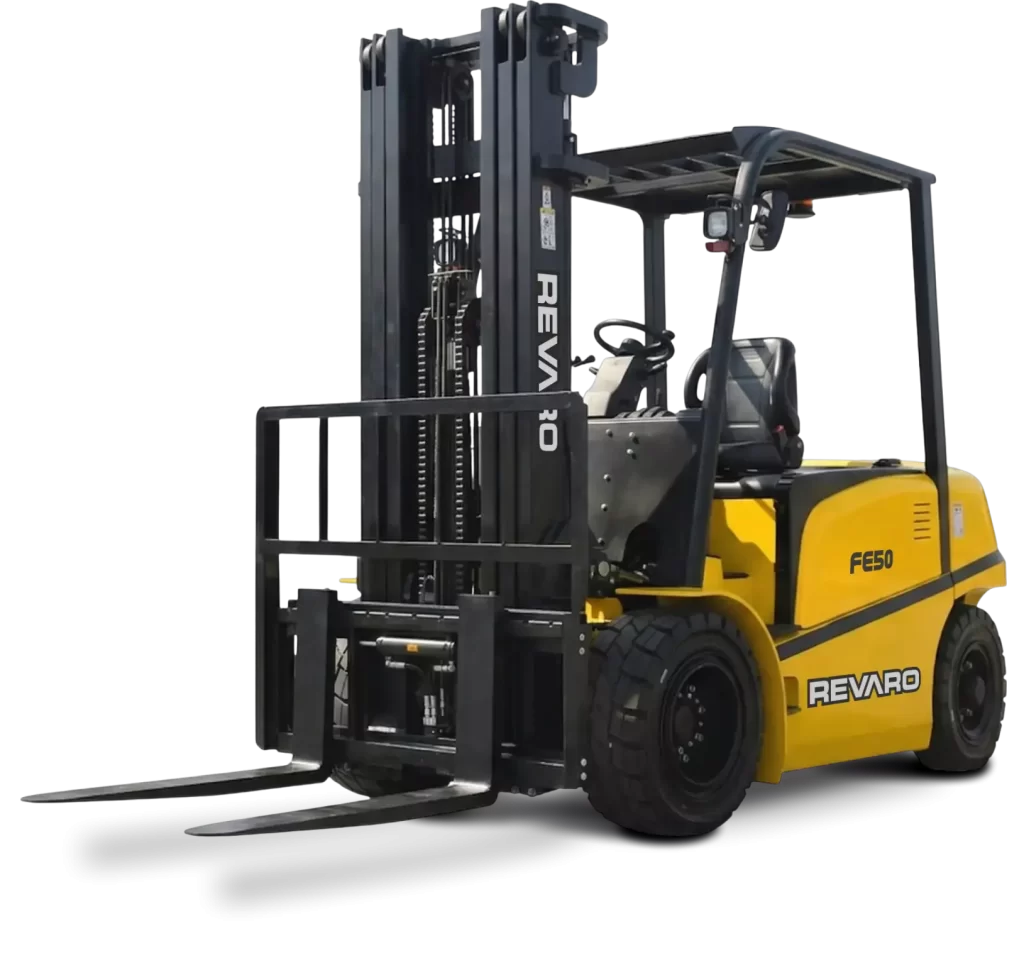

Heavy-Duty Strength for Industrial Use
Built for demanding environments, the Revaro FE50 delivers powerful lifting and reliable operation for heavy loads while keeping operating costs low.
- High-capacity lifting performance
- Durable, heavy-duty construction
- Cost-effective electric operation
Specifications
- Brand: Revaro
- Model: FE50
- Type: Electric Forklift
- Note: Custom Batteries Available
- Load center distance: 500mm
- Power type: Lithium/Battery
- Driving type: Seated
- Wheel base: 2050mm
- Tyre type: Solid
- Wheel number (front/rear): 2x/2
- Front tread: 1280mm
- Rear tread: 1190mm
- Tyre (front): 28×12.5-15
- Tyre (rear): 7.00-12
- Front overhang: 565mm
- Mast tilting angle: 6/12°
- Max lifting height (std ZM300): 3000mm
- Turning radius: 2900mm
- Overall length: 3135mm
- Overall width: 1400mm
- Travel speed (loaded/unloaded): 13/15km/h
- Lifting speed (loaded/unloaded): 280/400mm/s
- Lowering speed: <600mm/s
- Gradeability: 15%
- Total weight: 7200kg
- Battery weight: 1265kg
- Drive motor power: 18kW
- Lift motor power: 26kW
- Controller: ZAPI
- Brake: Hydraulic/Mechanical
- Hydraulic pressure: 19.5MPa
- Load capacity (mast): 4800-5000kg
- Mast overall height: 2240mm
- Free lift height: 950mm
- Tilt (mast): 6/12°
- Rated capacity: 5000kg
- Battery voltage/capacity: 80/560V/Ah
Available new from Bethlehem Vurkhyser Velddienste, with delivery, finance options and backup from our Bethlehem workshop. Contact us for pricing and availability.
